Reattaching a Super Beacon Antenna

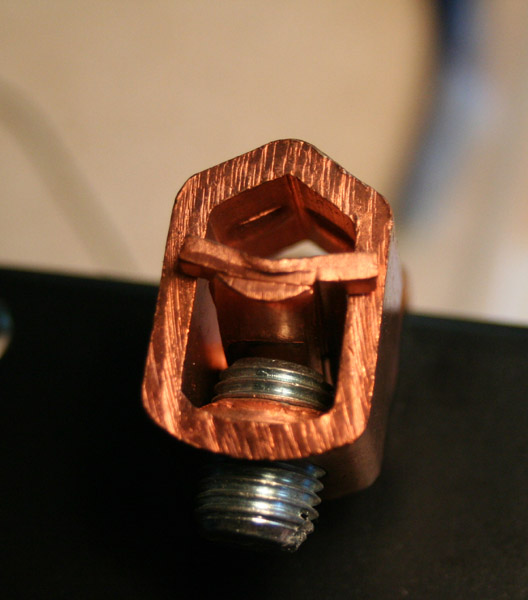

Empty Super Beacon Antenna Holder

This picture shows a Super Beacon Antenna Holder with no antenna.

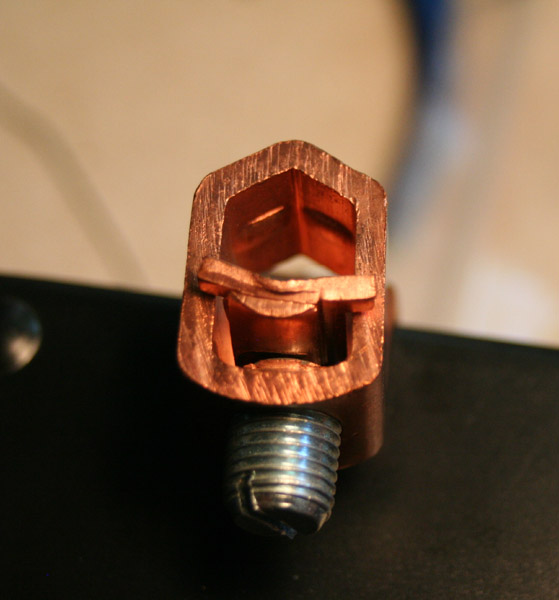

Open Holder

You want to use the screw (silver colored) to open the holder enough to allow the antenna to be inserted.

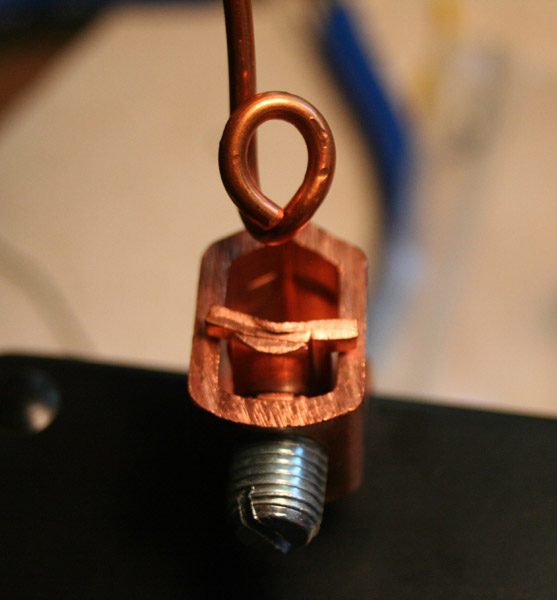

Make Sure Loop Is Toward Middle

When inserting the antenna into the holder, make sure the loop is toward the middle of the Super Beacon -- not toward the outside.

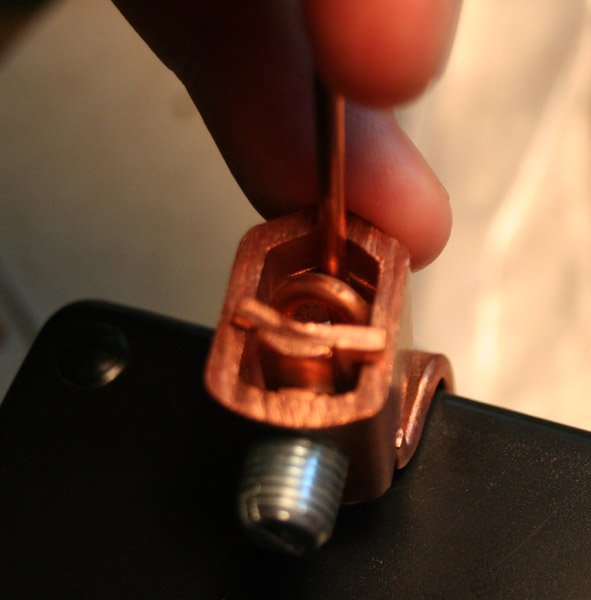

Antenna, Not Too High, Not Too Low.

The depth of the antenna in the holder should be just right -- not too deep and not too high. The picture is just about right.

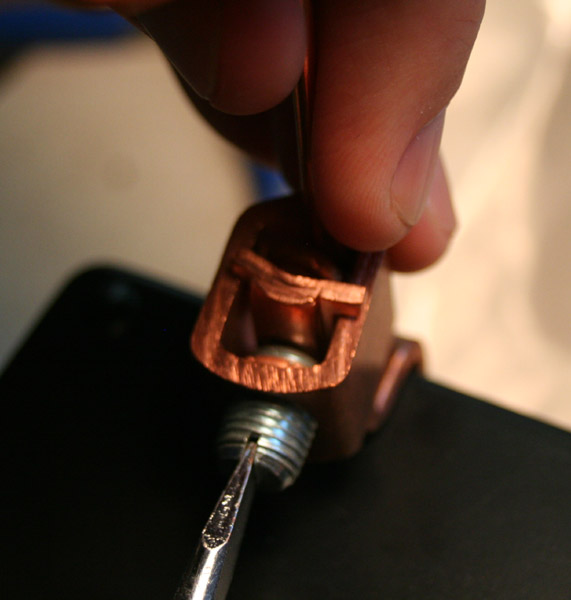

Use Screw To Hold Antenna In Place

Keep Holder Straight

It will take a little patience and care to keep the holder straight on the base.

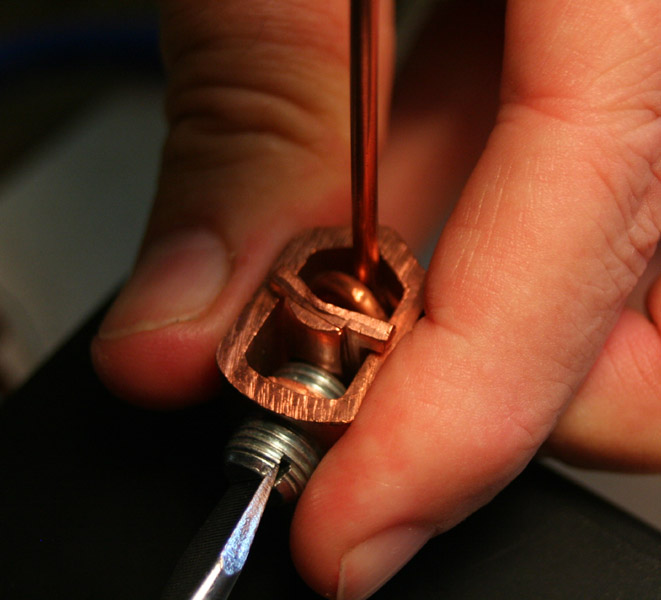

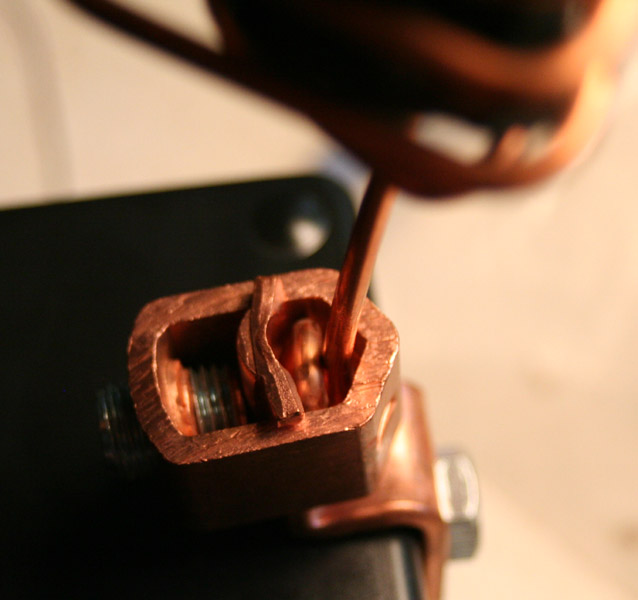

Adjust As You Go

As the screw pushes the center plate against the base of the antenna, you will need to adjust the holder so that the connection is solid and straight.

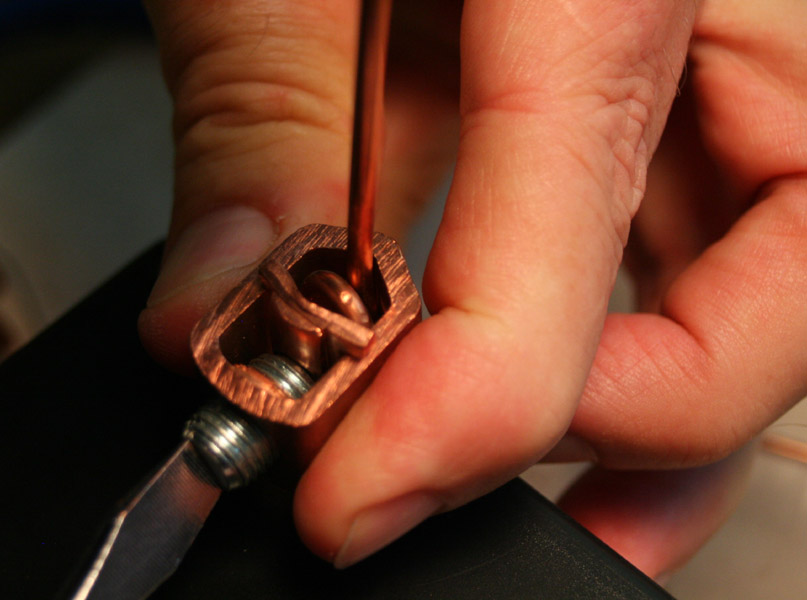

Fully Screwed In

This image shows the holder with its screw all the way in.

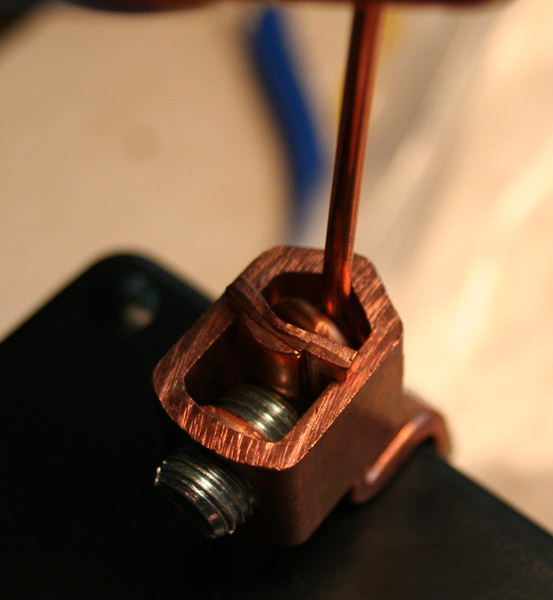

Firm And Secure

In this view you can see the antenna firm and secure in its base. Notice how the loop is toward the center of the device and it is firm against the upright wire.
